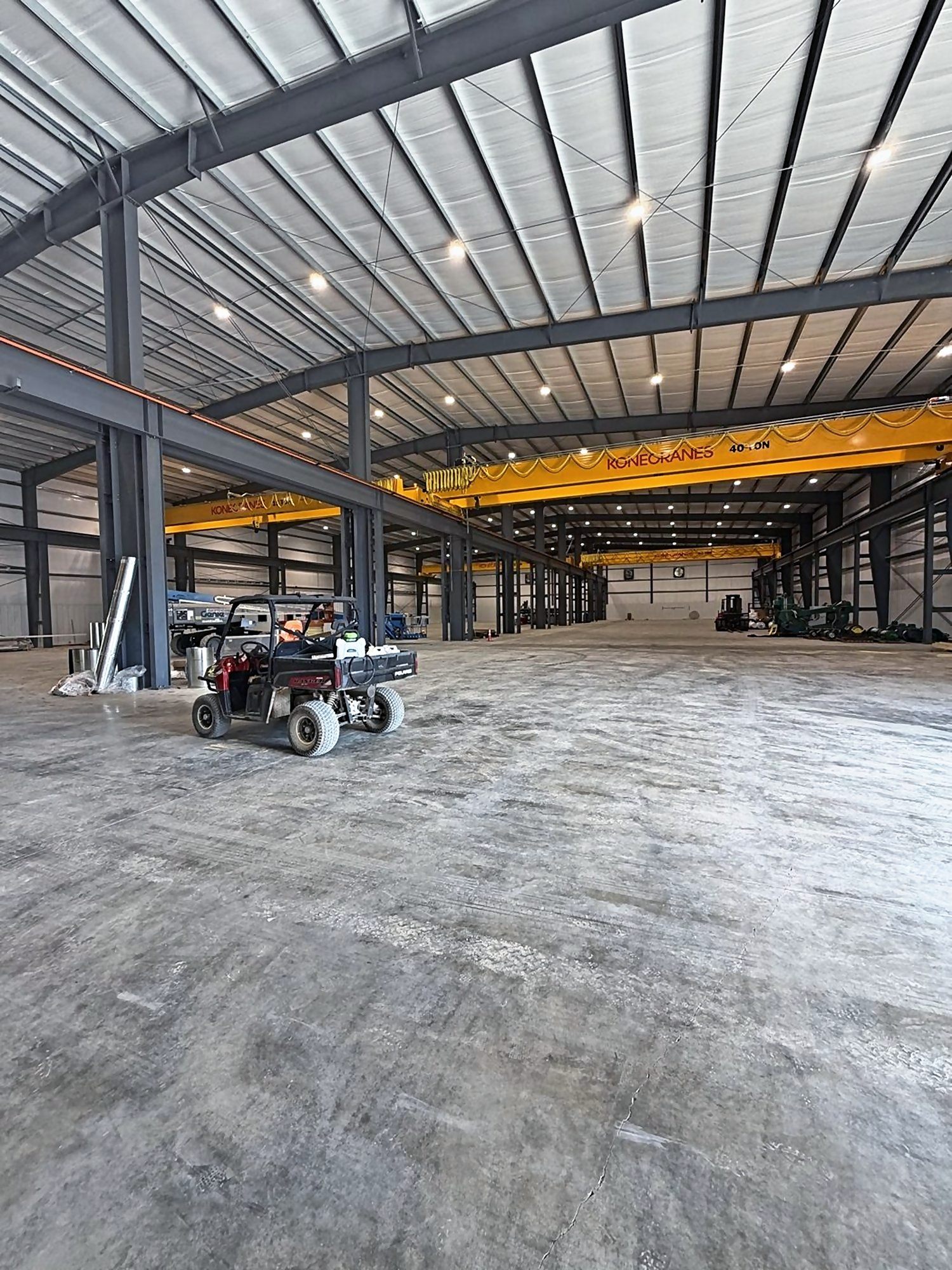

Inside Pro-Fab Machine's new building: a wide bay under 40-ton Konecranes overhead bridge cranes

A Full Mazak House · Hartselle, Alabama

PRO-FAB
MACHINEOF HARTSELLE, INC.

Large-Part 5-Axis Machining and Complete In-House Mechanical Assembly.

Request a Quote See the Showcase

ISO 9001 Certified

2405 Highway 31 NW, Hartselle, Alabama 35640

30CNC machines
Mazakfull Mazak house
120,000sq ft manufacturing
94,800lbmax 5-axis part
40toverhead cranes ×5

01 / Showcase

Six 5-Axis Mazaks.
Led by the V-100N.

From trunnion work to 94,800 lb bridge-mill parts, and Ø90" turned parts milled in the same clamping.

Mazak VERSATECH series · Footage: Mazak North America on YouTube

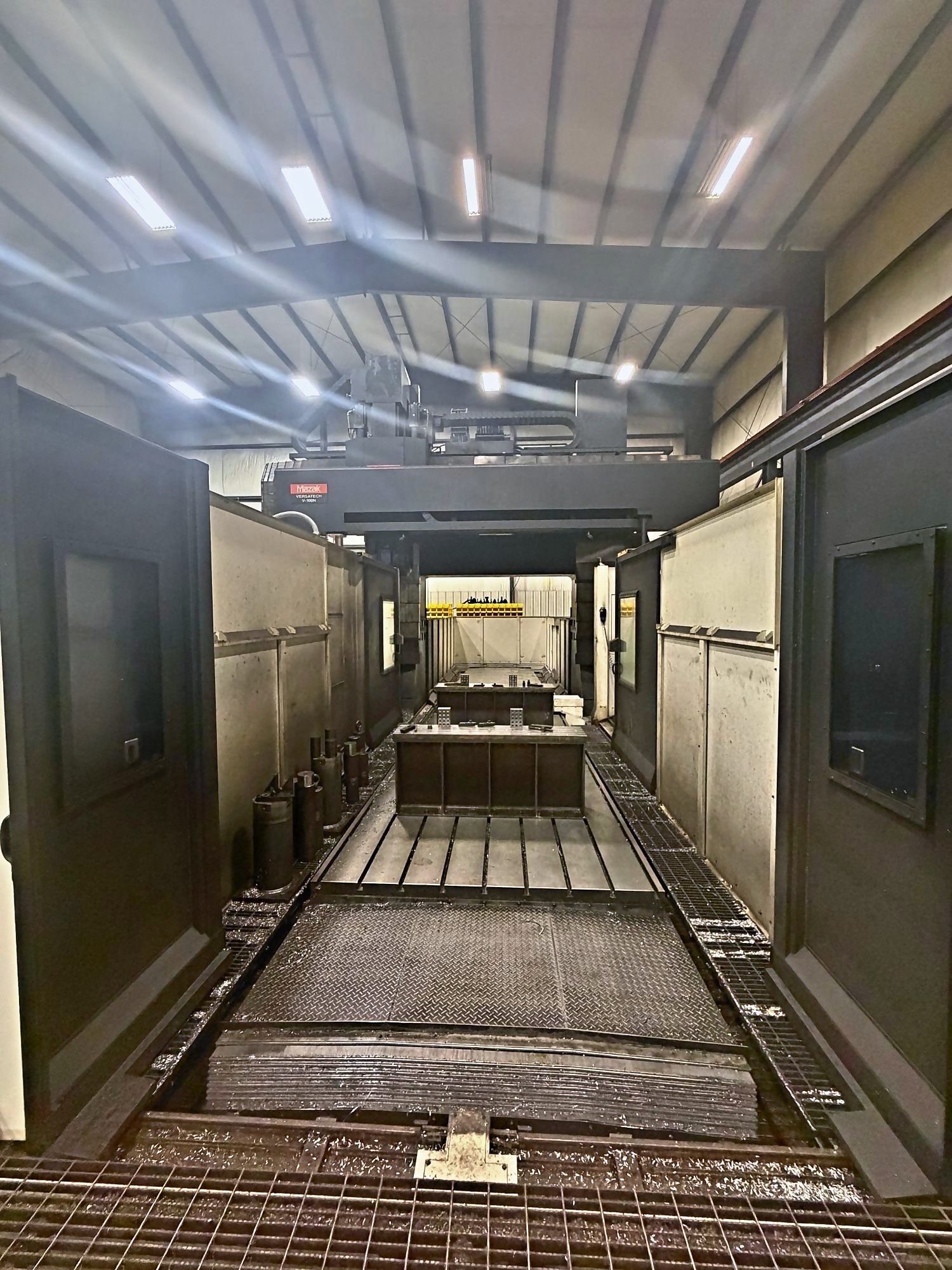

Mazak VERSATECH V-100N on the Pro-Fab floor

Flagship · Double-Column Bridge

Mazak VERSATECH V-100N

Frames, weldments and housings up to the size of an SUV, finished on all five sides in one setup.

Max part
197" × 108" × 69"
Table load
94,800 lb
Head
B ±100° · C ±180°
Tools
Up to 330

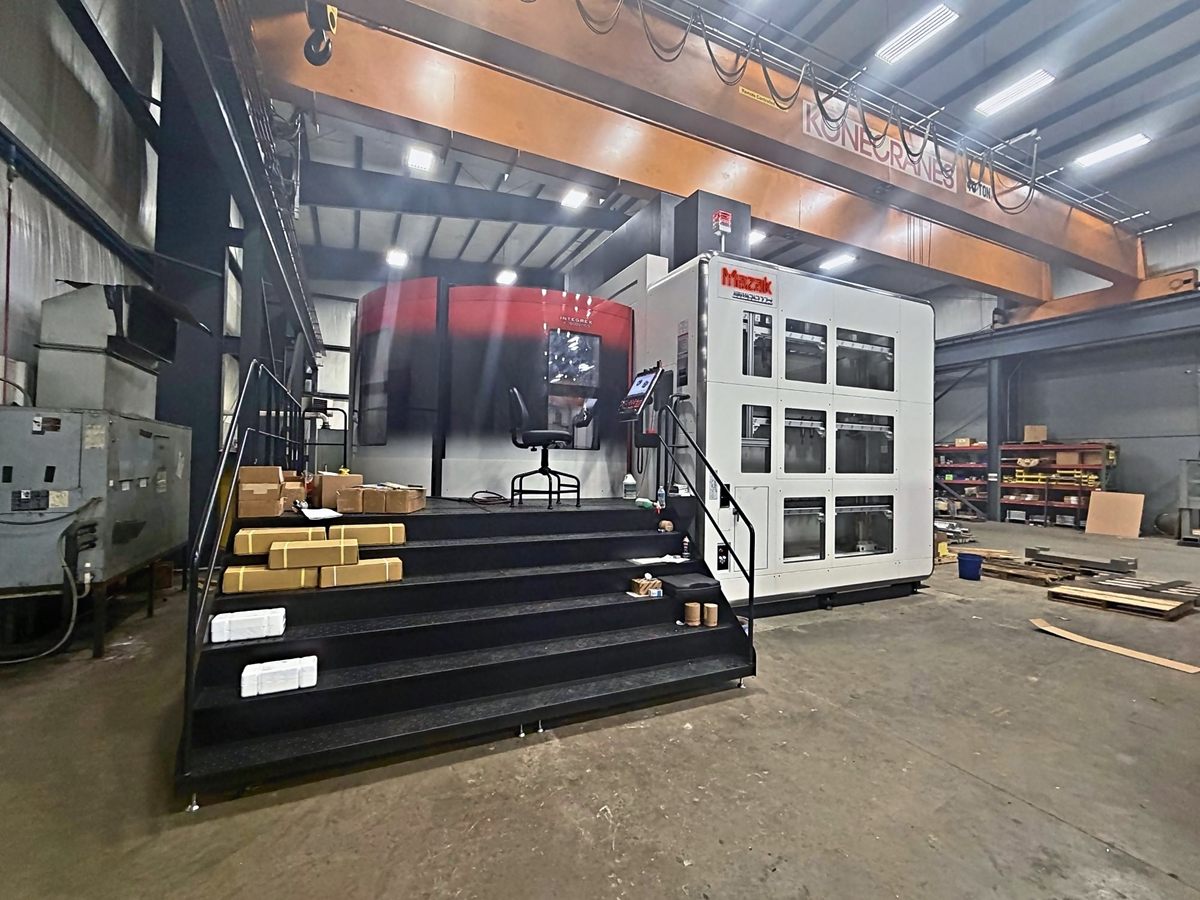

Mazak INTEGREX e-1600V/10S 2 MACHINES

Vertical Turn + 5-Axis Mill

INTEGREX e-1600V/10S ×2

Two of them. Big rings, flanges, valve bodies and gears, turned and milled without moving the part.

Max part
Ø90.55" × 66.3"
Table load
15,432 lb
Mazak INTEGREX i-450H

Horizontal Turn + 5-Axis Mill

INTEGREX i-450H

Shafts and chucked parts, turned and then milled at any angle, done in one.

Max Ø
26.38"
Milling
12,000 rpm

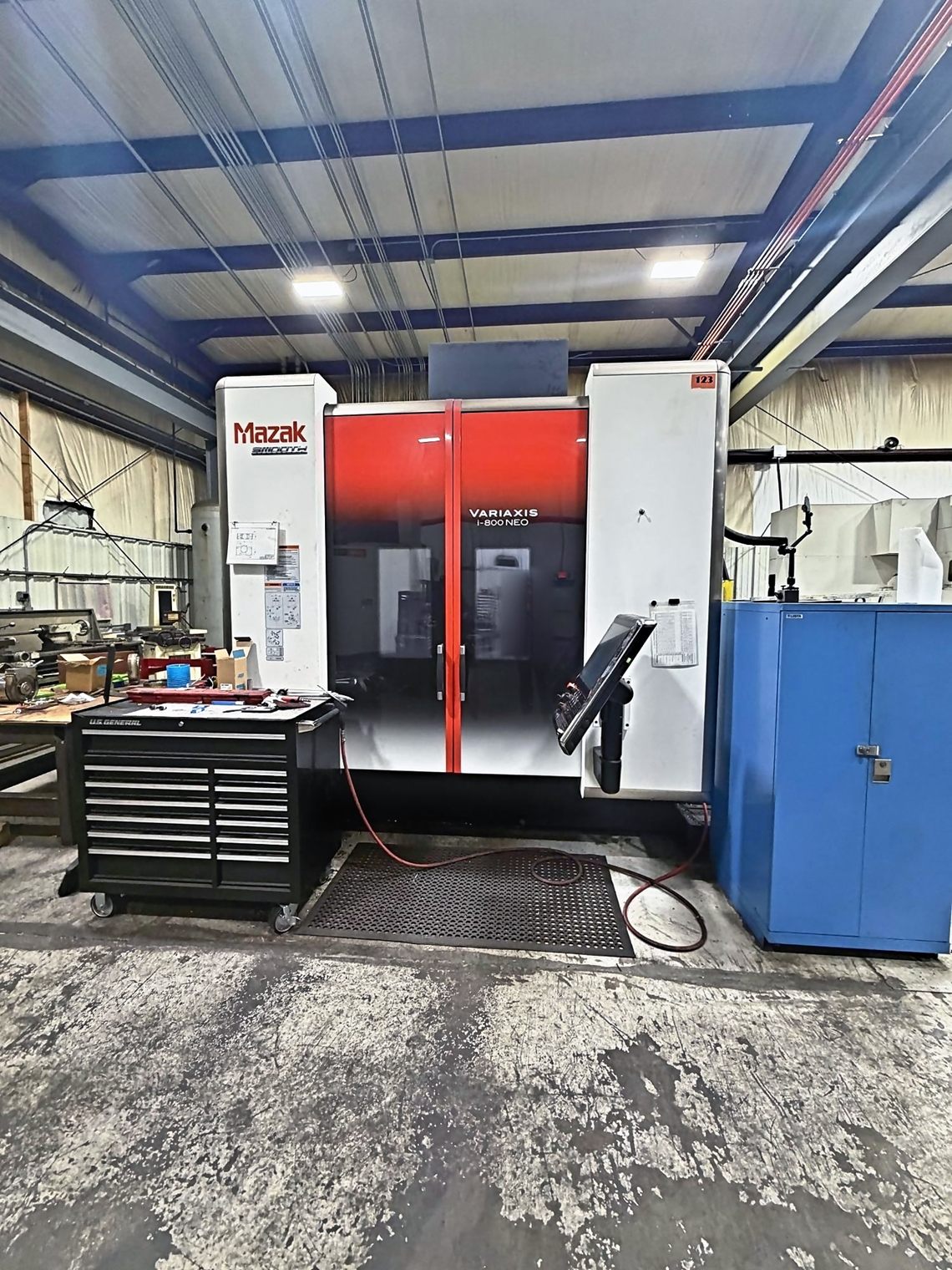

Mazak VARIAXIS i-800 NEO

Trunnion 5-Axis

VARIAXIS i-800 NEO

Simultaneous 5-axis for impellers, manifolds, valve bodies and molds.

Max part
Ø39.37" × 16.34"
Table load
2,205 lb

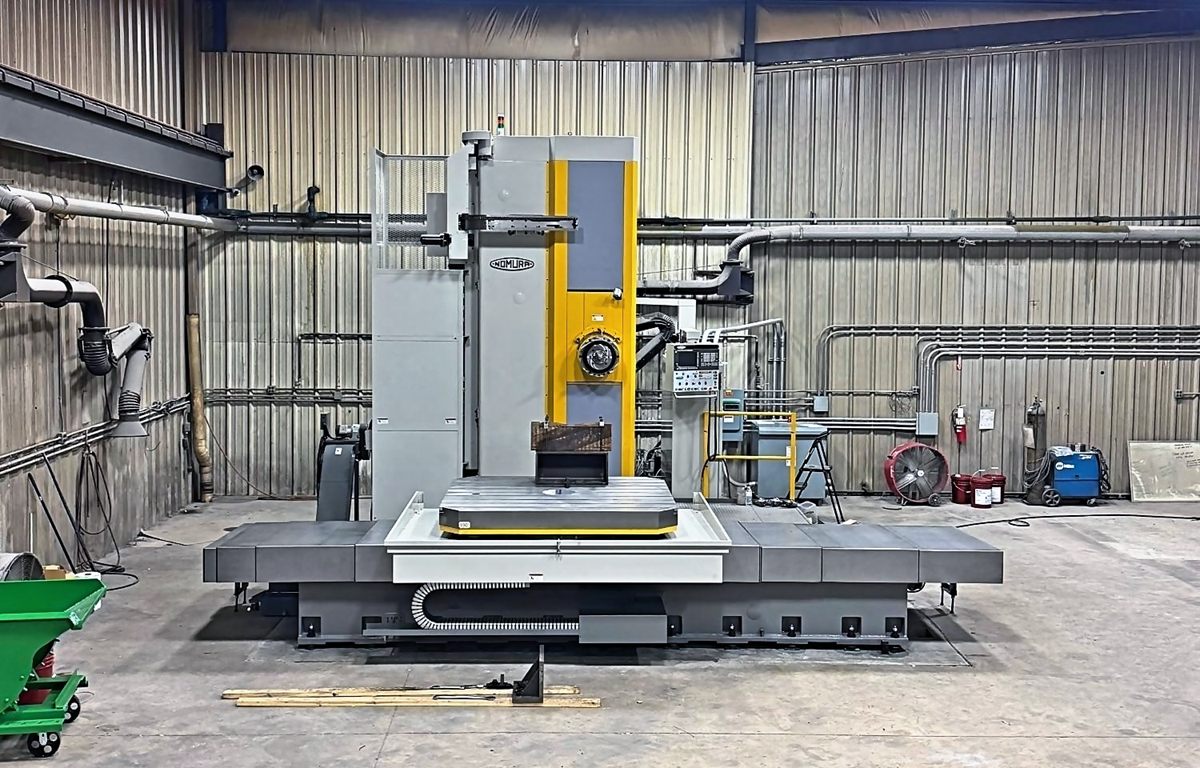

Nomura HBA-135P-R5 horizontal boring mill in the Pro-Fab shop NEW

Horizontal Boring Mill

Nomura HBA-135P-R5

Our newest machine. Deep boring and multi-face work on big, heavy parts. Mazak doesn't build a boring mill, so we chose Nomura.

Table
71" × 79"
Table load
33,000 lb

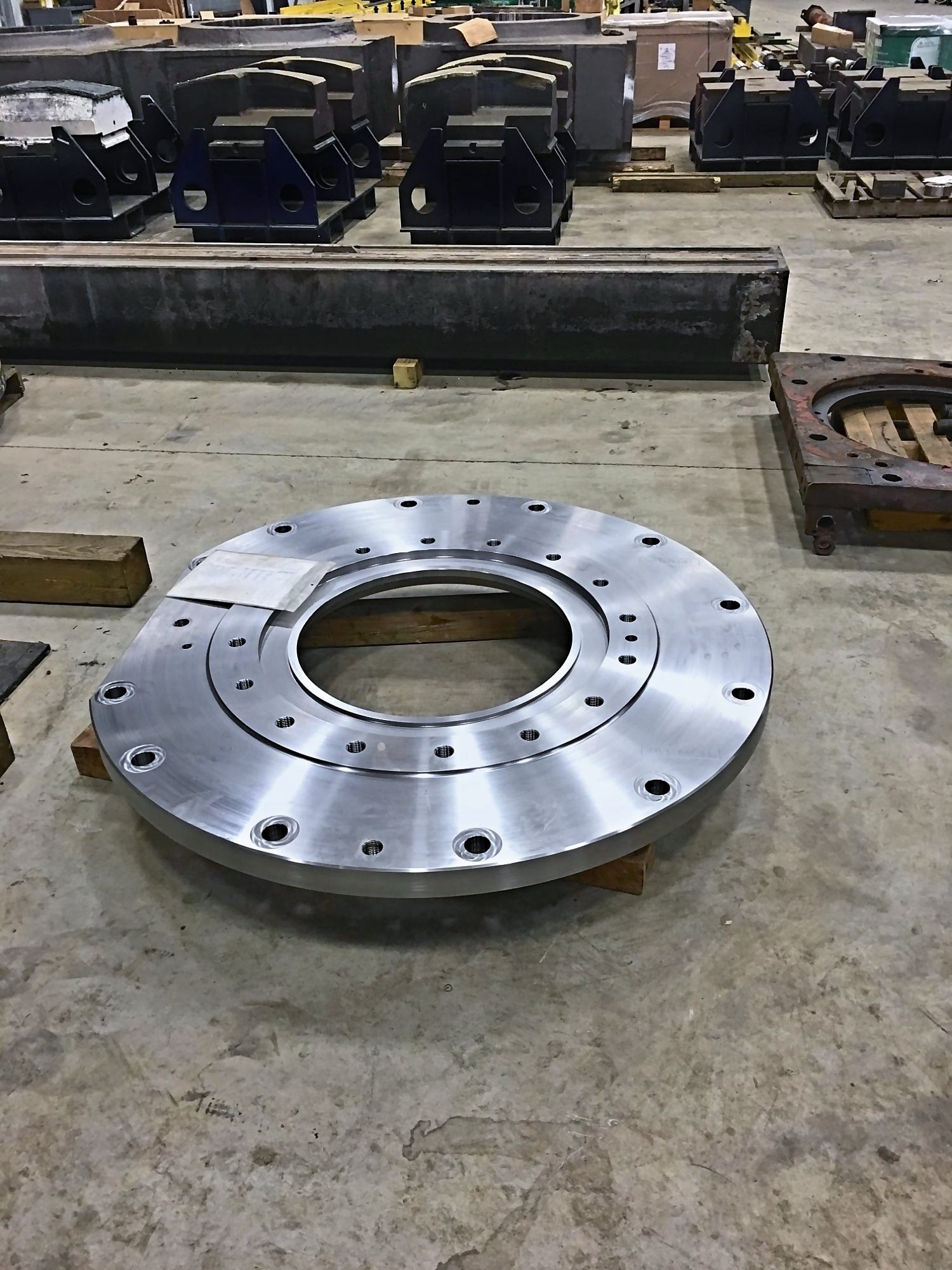

A large machined flange with bolt circles and a stepped bore

Precision at any size

From a Single Flange
To Assemblies Over 100,000 lbs.

02 / Projects

Machined. Fabricated. Assembled.
All Under One Roof.

Whole pieces of equipment, built from raw material and checked here before they ship.

  1. 01Engineering
  2. 02Machine
  3. 03Fabricate
  4. 04Assemble
  5. 05Quality Inspection

Complete Equipment Builds

Built from Scratch. Start to Finish.

Three separate jobs, each fully machined and fabricated from scratch, then assembled entirely in house at Pro-Fab Machine. With about 120,000 sq ft of manufacturing floor space, we have the room to take on large mechanical equipment builds.

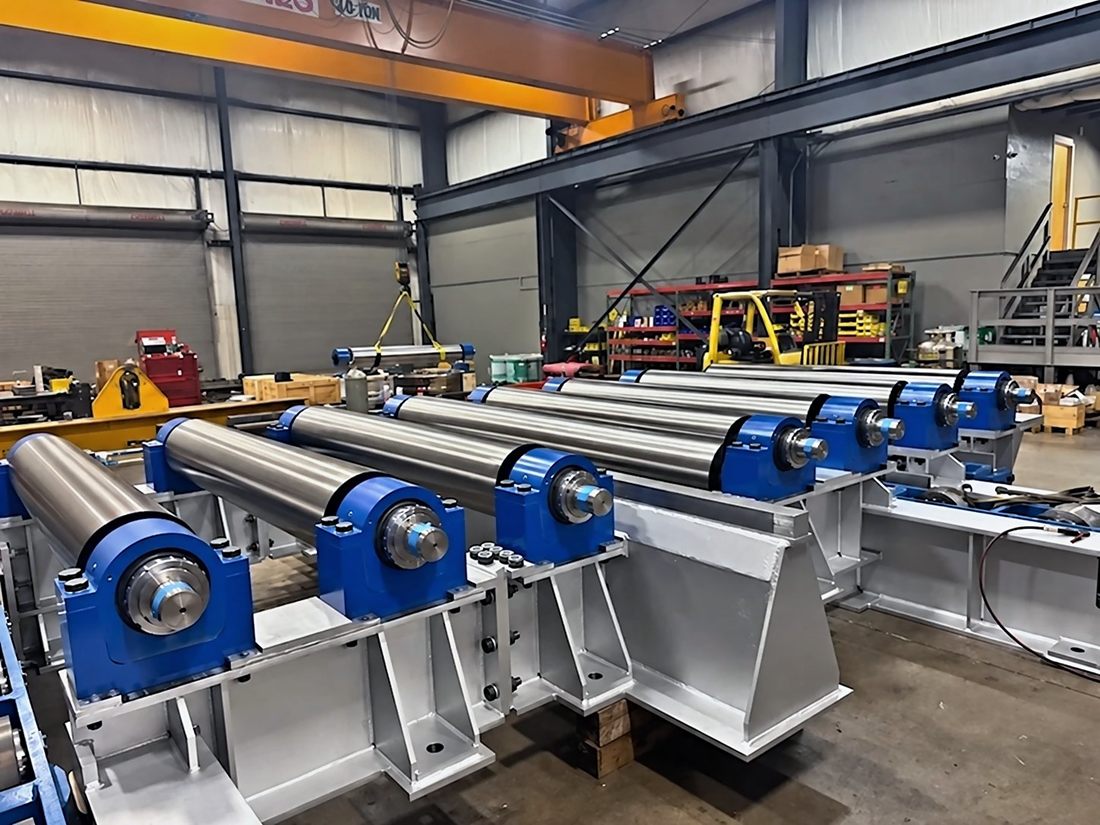

Roller table: polished rolls in blue bearing housings on new silver frames
Job 01Roller table, fabricated, machined and assembled start to finish.

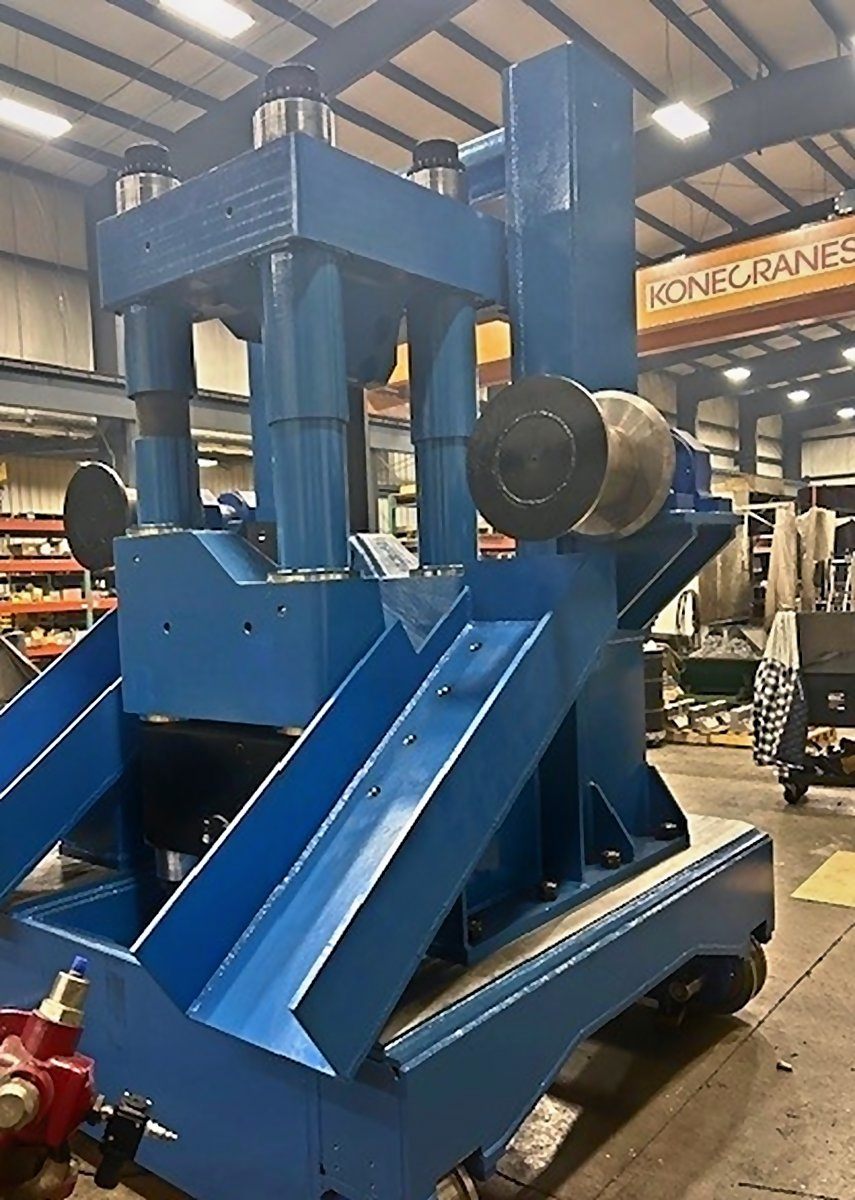

Tall blue machine stand with guide rolls and angled chutes, built in house
Job 02Machined, fabricated and assembled in house.

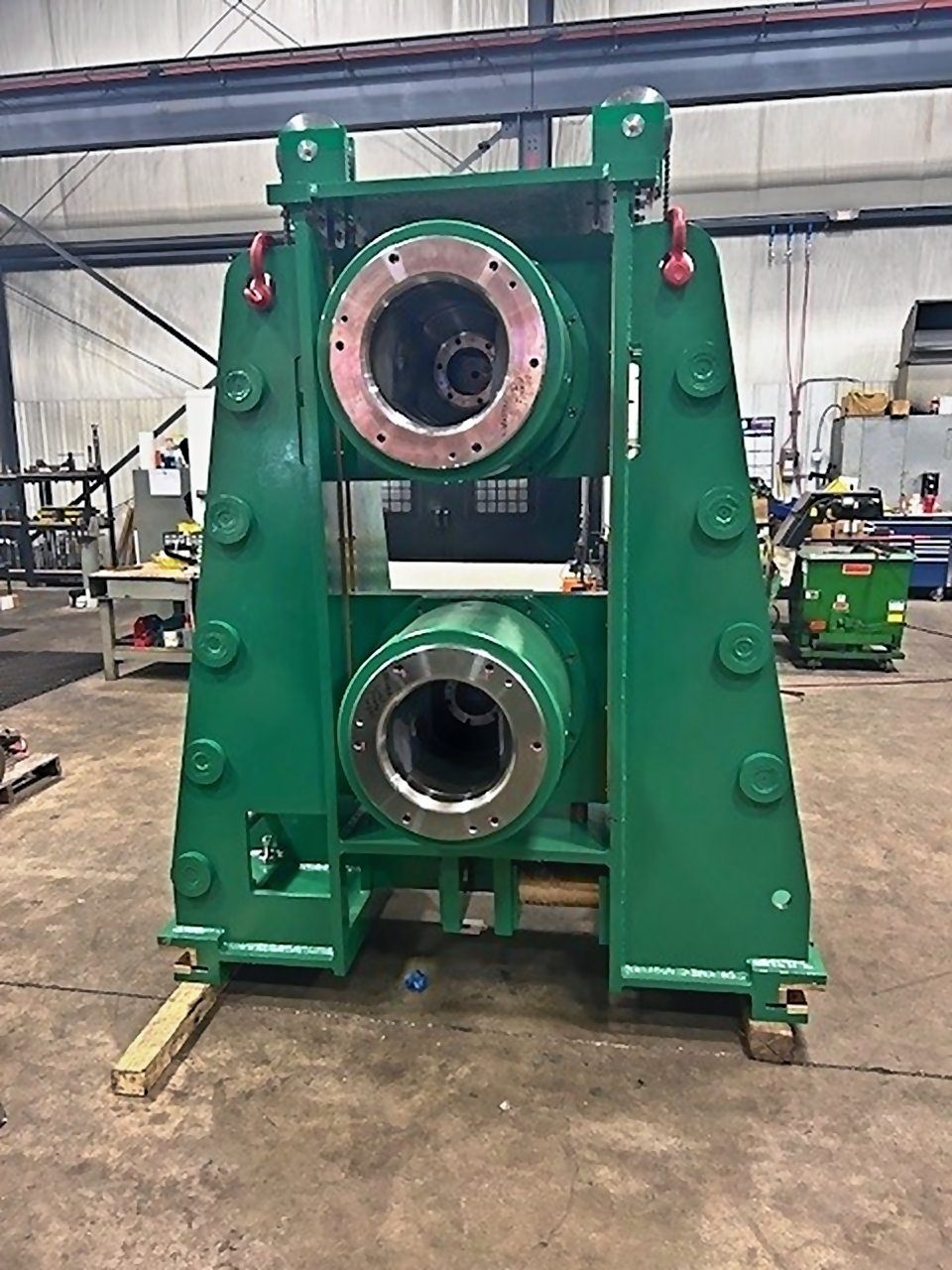

Green stand housing two large machined bearing housings, set on timbers
Job 03Machined from scratch, then assembled in house.

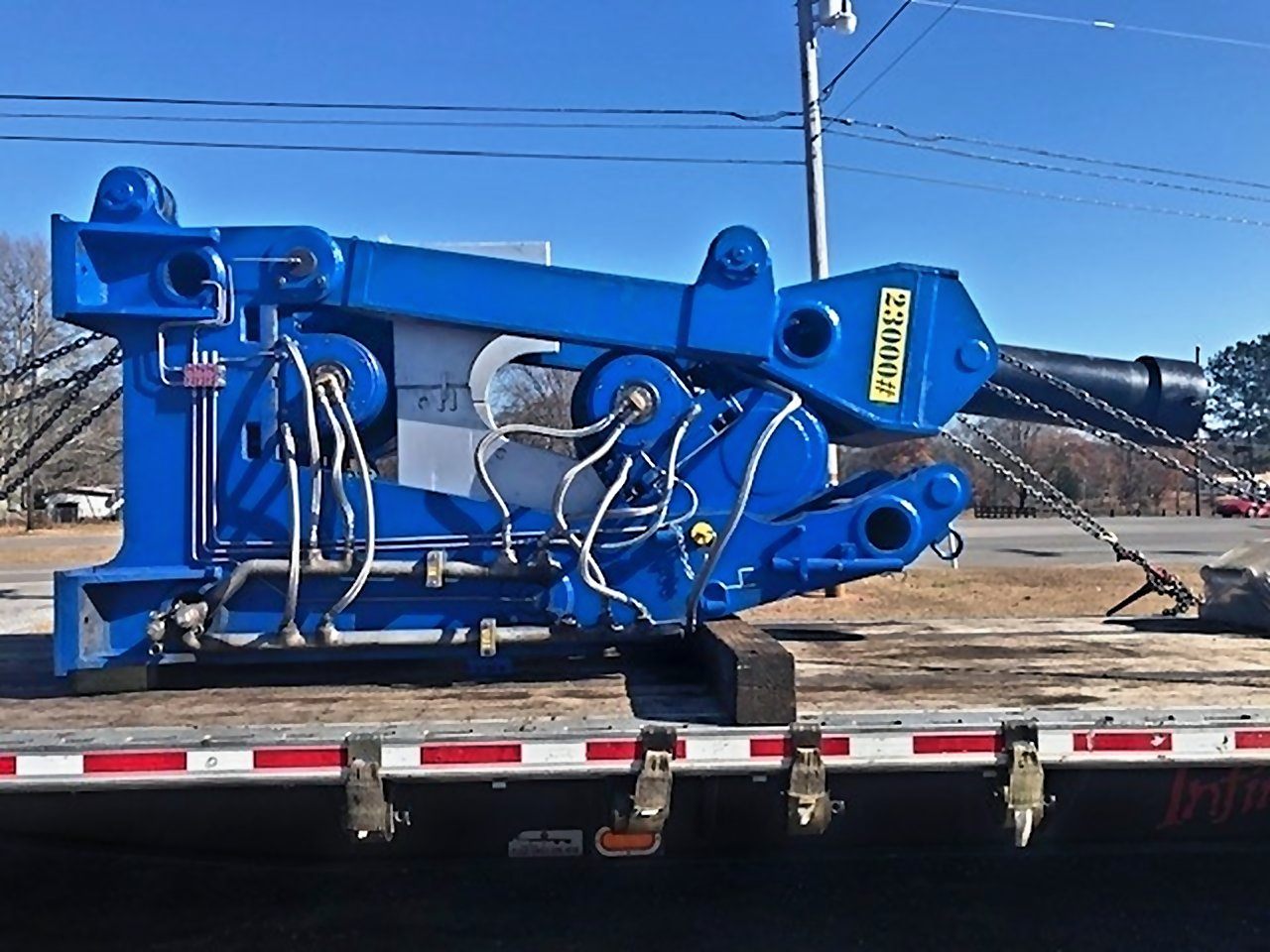

Blue 23,000 lb assembly, tagged 23000#, chained down on a flatbed trailer for shipping

Fully manufactured at Pro-Fab Machine: machined and fabricated from scratch, then assembled on our floor.

23,000lb

Chock Service & New Build

Chocks: Serviced or Built New.

New chock manufacturing, parts manufacturing and refurbishment, all done in house at Pro-Fab Machine.

Worn chock with hydraulic lines hanging from the overhead crane
In for serviceA chock in for service.

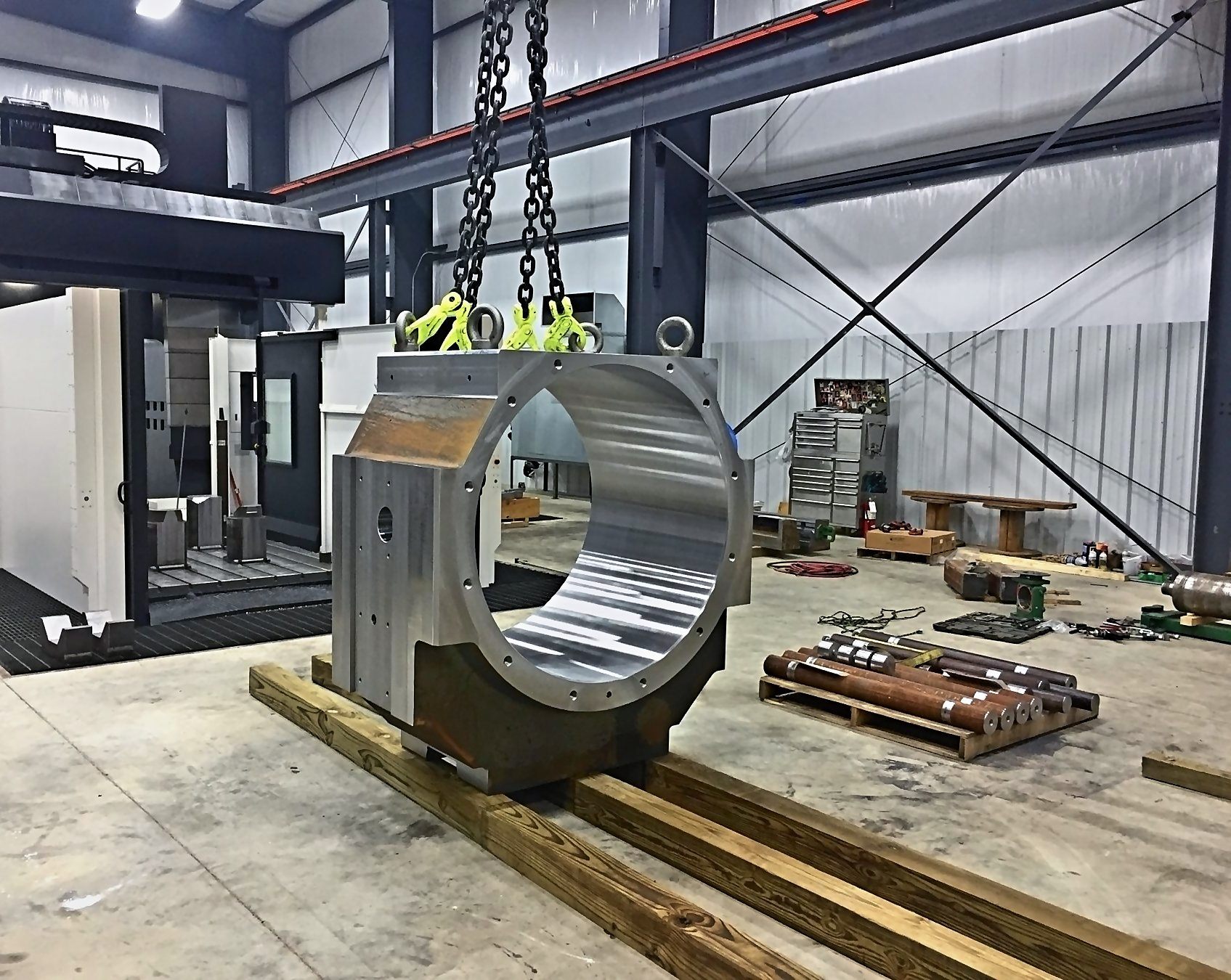

Brand-new chock with a freshly machined bore, rigged and set on timbers
Built newA brand-new chock, machined from scratch.

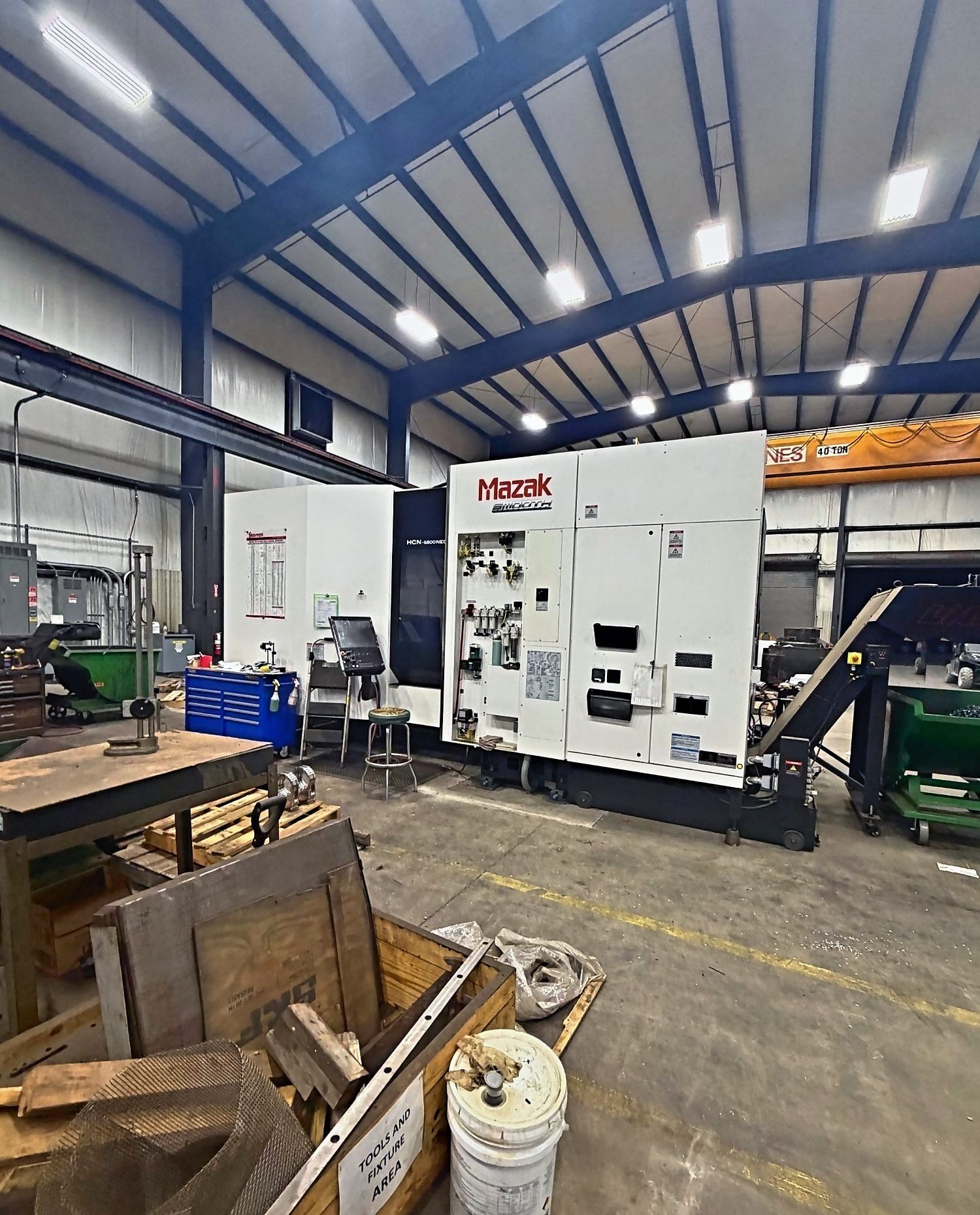

Mazak HCN-6800 NEO horizontal machining center on the Pro-Fab floor under a 40-ton crane

The machine floor

30 CNC Machines.
One Roof.

03 / Equipment

30 Mazak CNC Machines.

5-Axis & Multi-Tasking 06

  • VERSATECH V-100N double-column bridge197" × 108" × 69" · 94,800 lb
  • INTEGREX e-1600V/10S ×2Ø90.55" × 66.3" · 15,432 lb
  • INTEGREX i-450HØ26.38" · 12" chuck
  • VARIAXIS i-800 NEOØ39.37" × 16.34" · 2,205 lb
  • VORTEX5-axis

Horizontal & Boring 02

  • Mazak HCN-6800 NEO4-axis · 2 × 24.8" pallets
  • Nomura HBA-135P-R5 boring mill New33,000 lb table · 5.31" spindle

EDM 01

  • Wire EDMHardened material · fine profiles

Vertical Machining 10

  • MTV-815/120120" X · 6,614 lb
  • MTV-815/8080" X · 6,614 lb
  • MTV-655/8078.7" X · 5,511 lb
  • Vertical Center Nexus 700D/50-II60" X · geared head
  • VTC-250D/50 ×582.7" table · 2-zone
  • VCN-510C40-taper · 12,000 rpm

Turning 11

  • Slant Turn 500M ×2Ø35.8" · to 161" long
  • Quick Turn Nexus 550MYØ35.7" · 14.7" bore · Y
  • Quick Turn 450MYØ22.8" · Y · live tools
  • Quick Turn 450Ø22.8" · 7.3" bore
  • Quick Turn 450 · 80" bedØ22.8" × 80"
  • Quick Turn 350MYØ16.5" · 4" bar · Y
  • Quick Turn 350Ø16.5" · 4" bar
  • Quick Turn Smart 350Ø16.5" × 62.7"
  • Quick Turn Nexus 300Ø16" × 48"
  • Quick Turn Nexus 250Ø14.7" × 28"

04 / Quality

Measured
Before It Leaves.

Parts are inspected right where they sit, with machined features measured in 3D.

Portable CMM

FARO Arm

Takes the measurement to the part, so weldments and assemblies are checked without moving them.

  • Large parts measured in place, on the machine or the floor
  • Alignment checks during complete builds
  • First-article inspection

CMM System

Keyence CMM

Fast, repeatable 3D measurement of holes, bores, positions and profiles against the print.

  • In-process checks between operations
  • Final inspection before parts ship

05 / Careers

Build Big Things.
Join Pro-Fab.

We're hiring in Hartselle. Send us your name, phone number and email, and we'll reach out.

  • 01Machinist
  • 02Engineer
  • 03Mechanic
  • 04Welder

Request a Quote

Send Us
Your Project.

Tell us what you need machined, built or serviced. Your request goes straight to our team.

  • Large-part 5-axis machining
  • Complete machine builds and assembly
  • Chock service and new chocks
  • Turning, milling and boring
